CKY Performance

AFR 165cc SBF Renegade 20 Degree Street Heads 1399

AFR 165cc SBF Renegade 20 Degree Street Heads 1399

Regular price $2,064.27 USD
Regular price Sale price $2,064.27 USD
Sale Sold out
Brand:
Manufacturer's Part Number:
1399
Part Type:
Product Line:
Summit Racing Part Number:
AFR-1399
Combustion Chamber Volume (cc):
58
Intake Runner Volume (cc):
165cc
Exhaust Runner Volume (cc):
68cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Aluminum
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
1.900 in.
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
Yes
CNC-Machined Exhaust Runner:
Yes
Combustion Chamber Style:
Heart
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Spark Plug Style:
Angle
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.600 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.600 in.
Camshaft Style:
Hydraulic roller
Outside Diameter of Outer Spring (in.):
1.290 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Chromoly steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Valve Stem Seal Style:
Positive stop
Rocker Arm Studs Included:
Yes
Rocker Arm Nut Thread Size:
3/8 in.-24
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
5/16 in.
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
20
Exhaust Valve Angle:
20
Valve Guides Included:
Yes
Valve Guide Material:
Bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold as a pair.
Notes:
Cylinder heads are street ported.

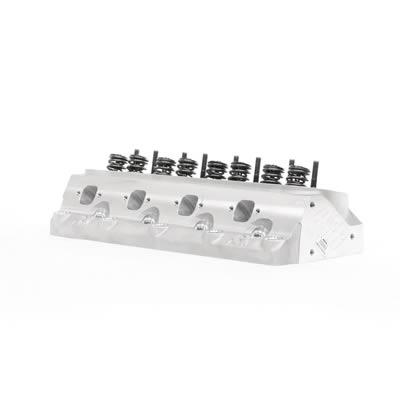

AFR 165cc SBF Renegade 20 Degree Street Heads

For the ultimate small block Ford street car, consider AFR 165cc SBF Renegade 20 degree street heads. Unlike some aftermarket heads, AFR's Ford cylinder heads (CARB E.O. # D250-3) fit all of your stock components; no special parts are required! With lightweight 8mm, 1.900 in. intake valves and 1.600 in. exhaust valves, combustion chamber volumes of 58 and 60cc, and 68cc exhaust ports, these emissions-legal aluminum cylinder heads are perfect for 289 and 302 engines operating from idle to 6,000 rpm. A 3/4 in. thick head deck makes the heads ideal for nitrous or blower applications. Renegade cylinder heads will not accept rail rocker arms, and hardened pushrods are required on models designed for stud mount rocker arms.
