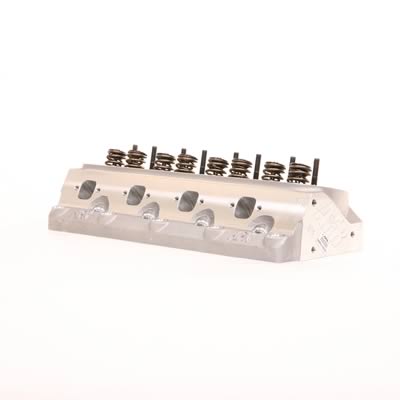

AFR 185cc SBF Renegade 20 Degree Street Heads 1388

AFR 185cc SBF Renegade 20 Degree Street Heads 1388

$2,064.27 USD
$2,064.27 USD
Sale Sold out
Brand:
Airflow Research (AFR)
Manufacturer's Part Number:
1388
Part Type:
Cylinder Heads
Product Line:
AFR 185cc SBF Renegade 20 Degree Street Heads
Summit Racing Part Number:
AFR-1388
Combustion Chamber Volume (cc):
58
Intake Runner Volume (cc):
185cc
Exhaust Runner Volume (cc):
68cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Aluminum
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.020 in.
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
Yes
CNC-Machined Exhaust Runner:
Yes
Combustion Chamber Style:
Heart
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Spark Plug Style:
Angle
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.600 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.600 in.
Camshaft Style:
Hydraulic roller
Outside Diameter of Outer Spring (in.):
1.290 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Chromoly steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Rocker Arm Studs Included:
Yes
Rocker Arm Nut Thread Size:
3/8 in.-24
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
5/16 in.
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
20
Exhaust Valve Angle:
20
Valve Guides Included:
Yes
Valve Guide Material:
Bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold as a pair.
Notes:
Cylinder heads are street ported. Rocker studs and guideplates are included in box. Installation is required.

AFR 185cc SBF Renegade 20 Degree Street Heads

Air Flow Research (AFR) 1388 heads are an ideal performance upgrade for 302-393 cubic-inch engines operating in the 6,000-6,500 rpm range. Part of the AFR 185 SBF Renegade line, these heads feature ported intake runners, exhaust ports, and combustion chambers for street/strip use and are made of high-quality aluminum, allowing for a lighter-weight build. They include 8mm valve stems paired with 2.020 in. intake and 1.600 in. exhaust valves and feature a combustion chamber volume of 58cc, an exhaust port volume of 68cc, an intake runner volume of 185cc, and a ¾ in. head deck.

Viable applications for this model include Ford 4.7L/289 (1963-68), 5.0L/302 (1968-95), and 5.8L/351 (1969-95) engines featuring stud-mount rocker arms. Please note that these heads will not accept rail rocker arms and hardened push rods are required.
For over thirty years, AFR has been engineering cylinder heads that deliver unmatched flow and power output. Manufactured with advanced porting technology, AFR heads are flow-tested and subjected to a rigorous quality control process to ensure maximum performance in all applications. Whether you pilot a top fuel dragster or a street machine, AFR has a set of cylinder heads designed for you.
