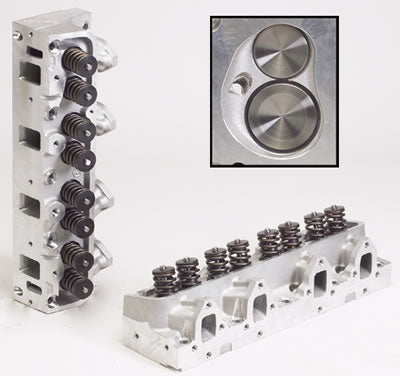

Edelbrock Performer RPM Cylinder Heads 60069

Edelbrock Performer RPM Cylinder Heads 60069

Regular price $936.50 USD
Regular price Sale price $936.50 USD
Sale Sold out
Brand:
Manufacturer's Part Number:
60069
Part Type:
Product Line:
Summit Racing Part Number:
EDL-60069
UPC:
085347600694
Combustion Chamber Volume (cc):
72
Intake Runner Volume (cc):
170cc
Exhaust Runner Volume (cc):
125cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Aluminum
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.090 in.
CNC-Machined Combustion Chamber:
No
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Combustion Chamber Style:
Kidney
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.660 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.600 in.
Camshaft Style:
Hydraulic flat tappet
Outside Diameter of Outer Spring (in.):
1.550 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Valve Stem Seal Style:
Positive stop
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
13
Valve Guides Included:
Yes
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through head
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold individually.
Notes:
Valve springs are recommended for flat tappet style camshafts. Edelbrock stud kit EDL-6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. Heads have the 16-bolt 428 Cobra Jet exhaust flange bolt pattern.

Edelbrock Performer RPM Cylinder Heads

Edelbrock Performer RPM aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. These heads offer improved power throughout the RPM range for greater throttle response and top-end horsepower. Countless options are available; order the model recommended for your vehicle and engine application.
