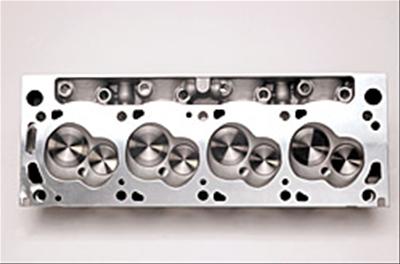

Edelbrock Performer RPM Cylinder Heads 61629

Name: Edelbrock Performer RPM Cylinder Heads 61629
Brand: CKY Performance
Price: 1236.5 USD
Availability: InStock

Edelbrock Performer RPM Cylinder Heads 61629

$1,236.50 USD

Sale Sold out

Product variants

Quantity

Brand:

Edelbrock

Manufacturer's Part Number:

61629

Part Type:

Cylinder Heads

Product Line:

Edelbrock Performer RPM Cylinder Heads

Summit Racing Part Number:

EDL-61629

UPC:

085347616299

Combustion Chamber Volume (cc):

60

Intake Runner Volume (cc):

190cc

Exhaust Runner Volume (cc):

90cc

Cylinder Head Style:

Assembled

Cylinder Head Material:

Aluminum

Intake Port Shape:

Rectangular

Intake Valve Diameter (in.):

2.050 in.

CNC-Machined Combustion Chamber:

No

CNC-Machined Intake Runner:

No

CNC-Machined Exhaust Runner:

No

Combustion Chamber Style:

Kidney

Intake Port Location:

Standard

Exhaust Port Shape:

Square

Exhaust Port Location:

Standard

Intake Valves Included:

Yes

Exhaust Valves Included:

Yes

Exhaust Valve Diameter (in.):

1.600 in.

Valve Springs Included:

Yes

Maximum Valve Lift (in.):

0.580 in.

Camshaft Style:

Hydraulic flat tappet

Outside Diameter of Outer Spring (in.):

1.550 in.

Damper Spring Included:

Yes

Number of Springs Per Valve:

Single

Retainers Included:

Yes

Retainer Material:

Chromoly steel

Locks Included:

Yes

Lock Style:

7 degree

Valve Stem Seals Included:

Yes

Valve Stem Seal Style:

Positive stop

Rocker Arm Studs Included:

Yes

Rocker Arm Nut Thread Size:

7/16 in.-20

Rocker Arms Included:

No

Rocker Arm Nuts Included:

No

Guideplates Included:

Yes

Guideplate Pushrod Size:

5/16 in.

Valve Cover Mounting Style:

Perimeter bolt

Accessory Bolt Holes Drilled:

Yes

Intake Valve Angle:

9.5

Valve Guides Included:

Yes

Valve Guide Material:

Manganese bronze

Valve Seats Machined:

Yes

Valve Seat Machine Style:

3-angle

Valve Seat Material:

Ductile iron

Cylinder Head Color:

Natural

Steam Holes Drilled:

No

Oiling Style:

Through pushrod

Machined for O-Ring:

No

Heat Crossover:

No

Quantity:

Sold individually.

Edelbrock Performer RPM Cylinder Heads

Edelbrock Performer RPM aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. These heads offer improved power throughout the RPM range for greater throttle response and top-end horsepower. Countless options are available; order the model recommended for your vehicle and engine application.
