Summit Racing™ Coated Forged Pistons SUM-17400C-20

Name: Summit Racing™ Coated Forged Pistons SUM-17400C-20
Brand: CKY Performance
Price: 459.99 USD
Availability: InStock

Summit Racing™ Coated Forged Pistons SUM-17400C-20

$459.99 USD

Sale Sold out

Product variants

Quantity

Brand:

Summit Racing

Manufacturer's Part Number:

SUM-17400C-20

Part Type:

Pistons

Product Line:

Summit Racing™ Coated Forged Pistons

Summit Racing Part Number:

SUM-17400C-20

UPC:

190861232099

Piston Rings Included:

No

Bore (in.):

3.800 in.

Bore (mm):

96.520mm

Stroke:

3.622 in.

Engine Stroke Type:

Stock

Rod Length:

6.098 in.

Piston Style:

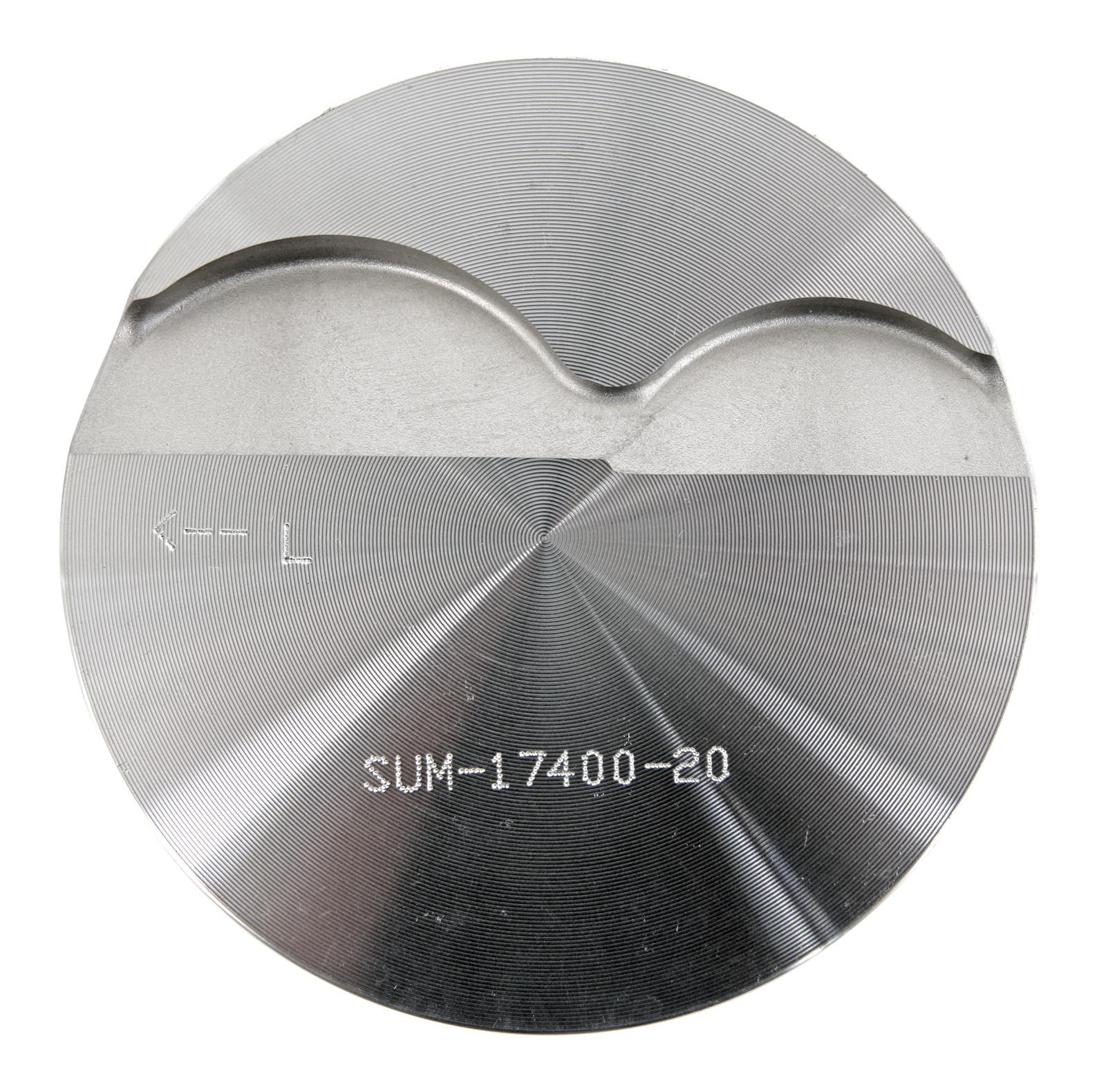

Flat top, with two valve reliefs

Piston Material:

Forged aluminum

Compression Height (in.):

1.331 in.

Piston Head Volume (cc):

+2.90cc

Wrist Pin Style:

Press-fit or floating

Wrist Pin Retainers Included:

Yes

Wrist Pin Included:

Yes

Pin Diameter (in.):

0.945 in.

Piston Ring Thickness:

1.50mm x 1.50mm x 3.00mm

File Fit:

No

Gapless:

No

Quantity:

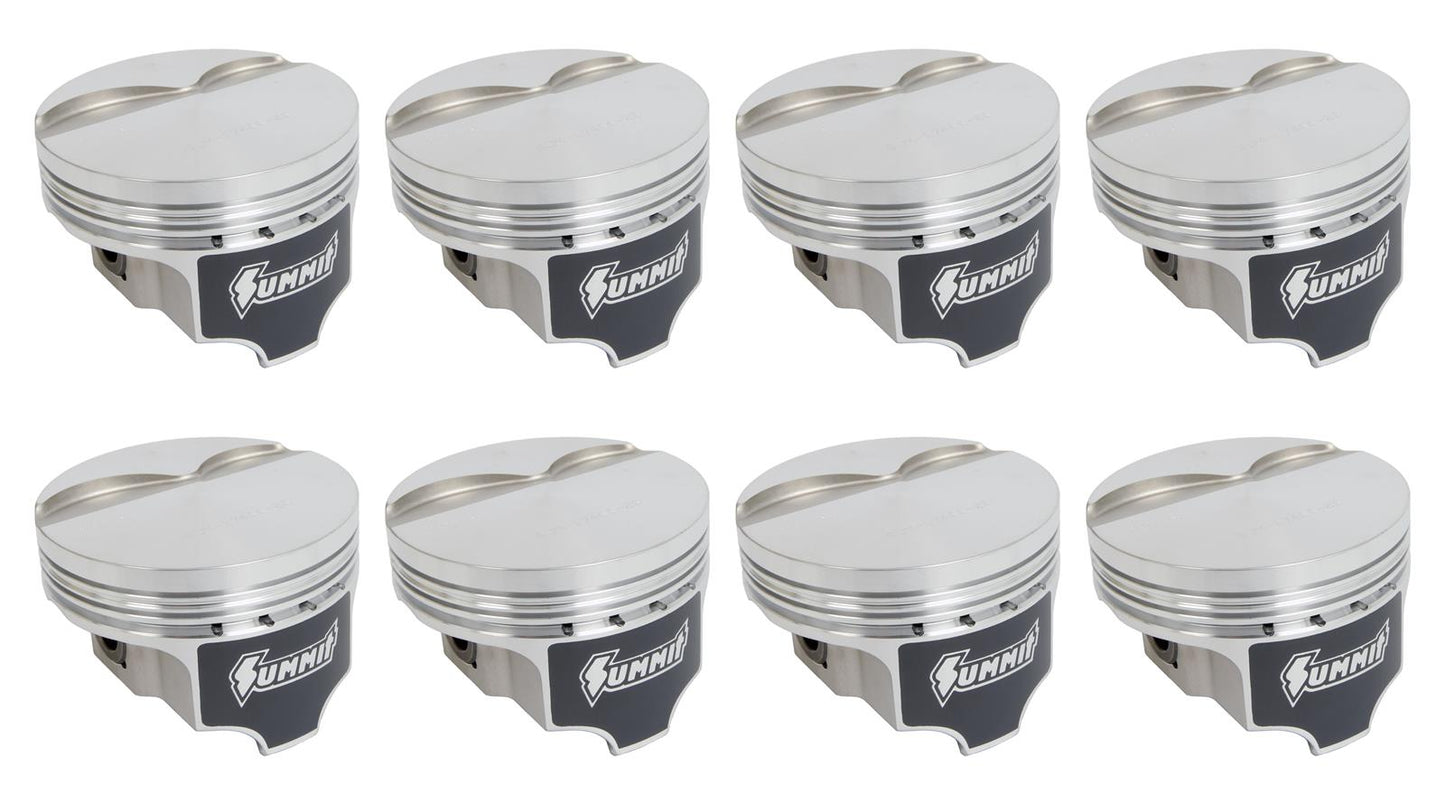

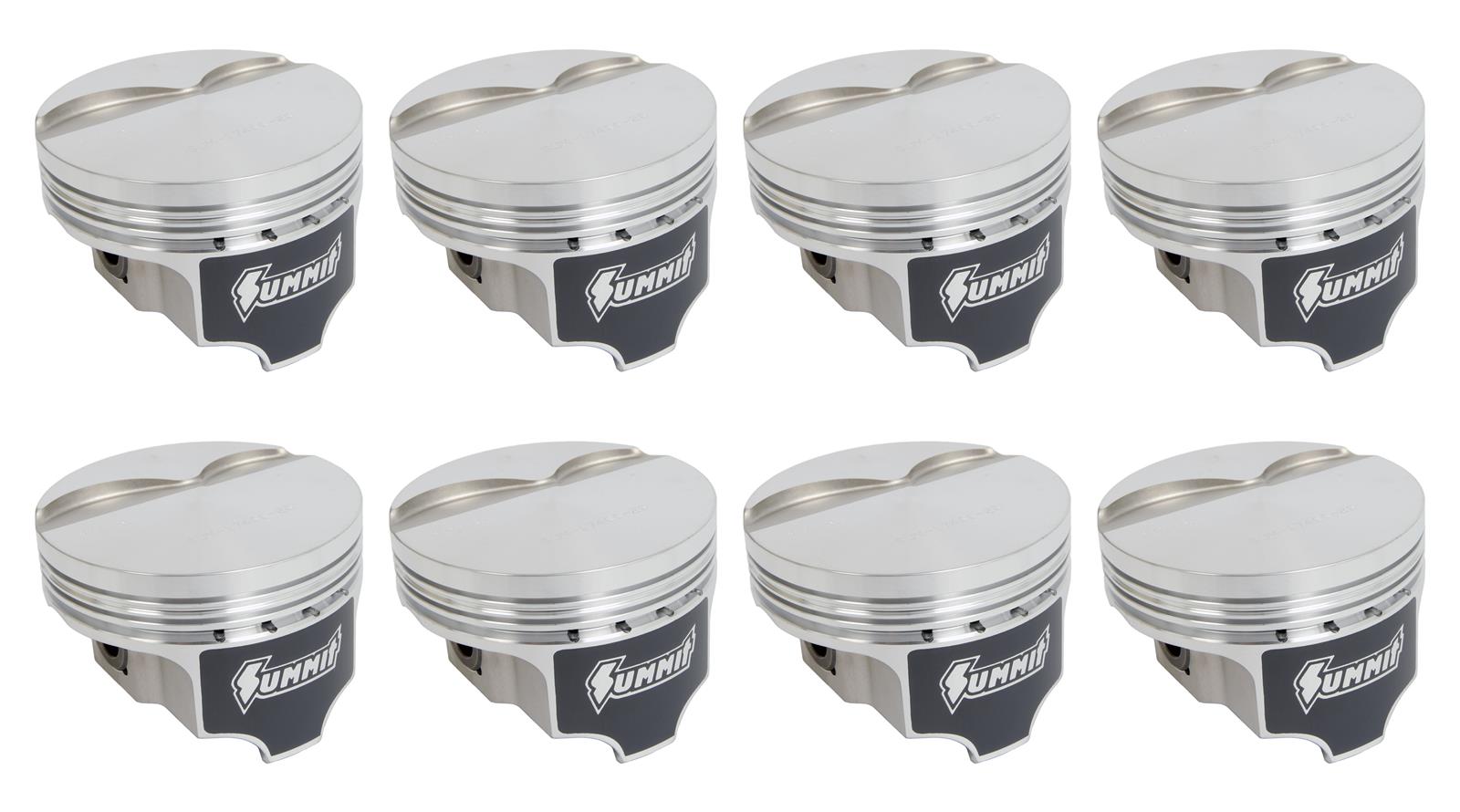

Sold as a set of 8.

Notes:

These pistons with .945 in. pins are designed for Gen. 3 Press-fit rod applications. Gen. 4 full-floating connecting rods with .9433 in. pins variants are available in the Summit Pro LS forged piston line.

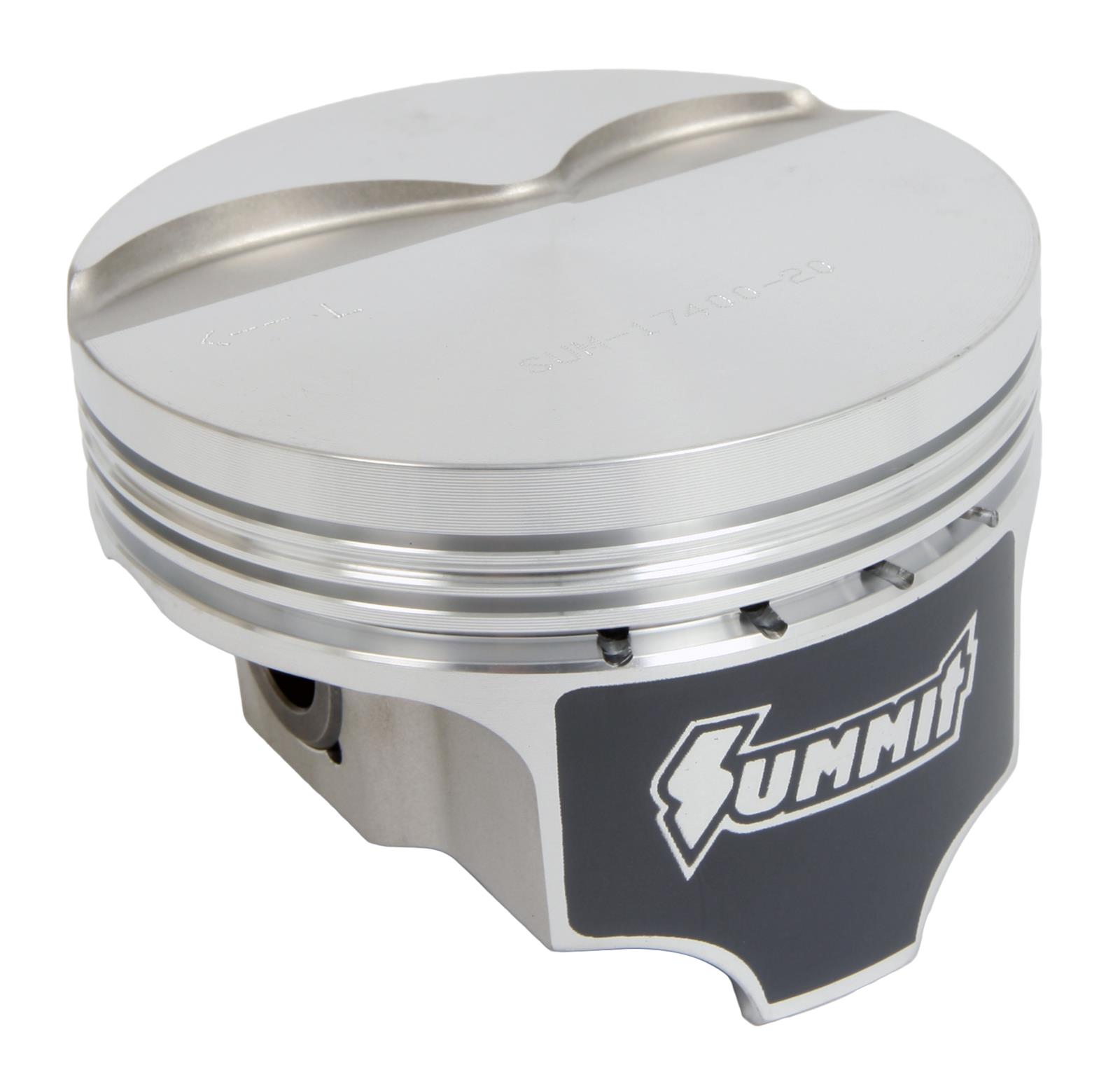

Summit Racing™ Coated Forged Pistons

Make your engine rebuild more affordable with Summit Racing™ coated forged pistons! They offer the strength of a forging at a cast piston price. They're forged from 4032 aluminum, an alloy containing silicon—which controls the thermal expansion for tighter piston-to-wall clearances. This unique alloy and design reduces piston wobble, limits noise, improves piston ring seating, and increases the overall life of skirts and pin bores. The special coating on these forged pistons adds extra protection from both skirt scuffing during cold starts or on an overheated engine. These sets are available in dozens of models/options to fit applications from 1967 and up. Summit Racing™ coated forged pistons will meet your engine demands!
