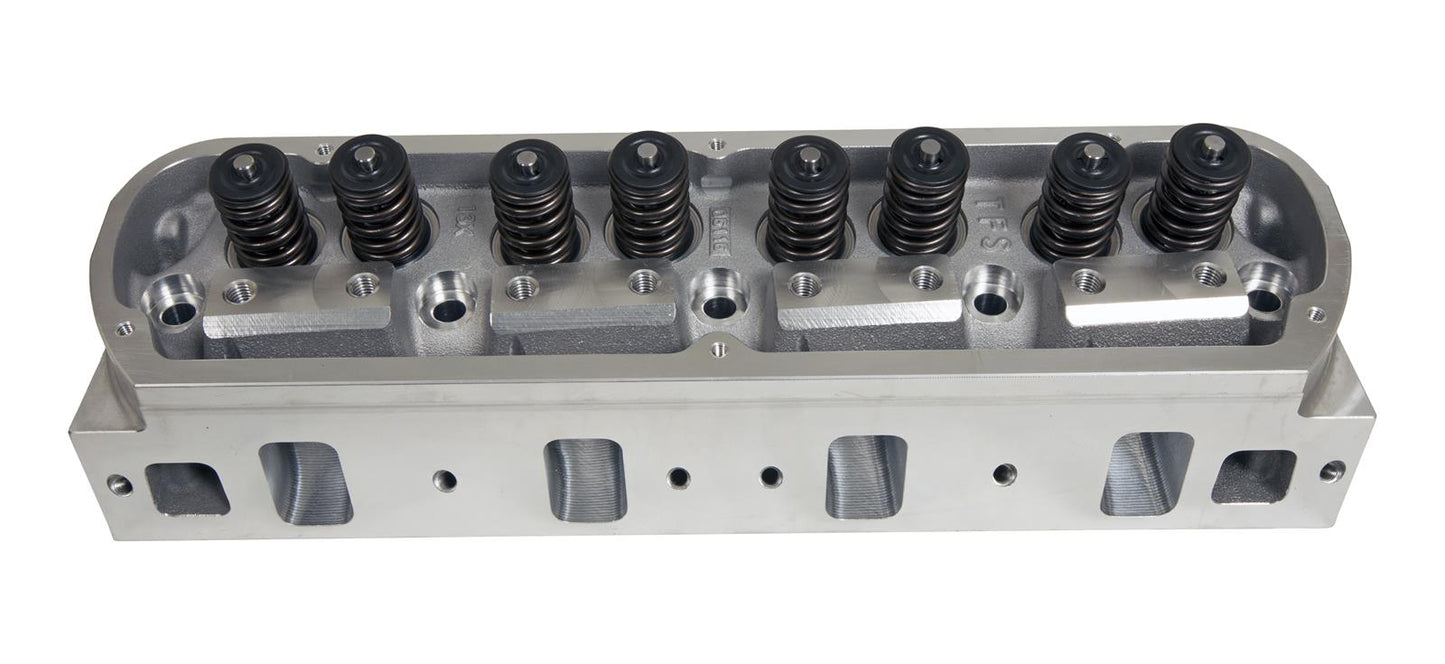

Trick Flow® Twisted Wedge® 11R 170 Cylinder Heads for Small Block Ford TFS-52515301-C00

Name: Trick Flow® Twisted Wedge® 11R 170 Cylinder Heads for Small Block Ford TFS-52515301-C00
Brand: CKY Performance
Price: 1166.99 USD
Availability: InStock

Trick Flow® Twisted Wedge® 11R 170 Cylinder Heads for Small Block Ford TFS-52515301-C00

$1,166.99 USD

Sale Sold out

Product variants

Quantity

Brand:

Trick Flow Specialties

Manufacturer's Part Number:

TFS-52515301-C00

Part Type:

Cylinder Heads

Product Line:

Trick Flow® Twisted Wedge® 11R 170 Cylinder Heads for Small Block Ford

Summit Racing Part Number:

TFS-52515301-C00

UPC:

842645115103

Combustion Chamber Volume (cc):

53

Intake Runner Volume (cc):

170cc

Exhaust Runner Volume (cc):

66cc

Cylinder Head Style:

Assembled

Cylinder Head Material:

Aluminum

Intake Port Shape:

Rectangular

Intake Valve Diameter (in.):

2.020 in.

CNC-Machined Combustion Chamber:

Yes

CNC-Machined Intake Runner:

Yes

CNC-Machined Exhaust Runner:

Yes

Combustion Chamber Style:

Twisted Wedge®

Intake Port Location:

Standard

Exhaust Port Shape:

Square

Exhaust Port Location:

Standard

Spark Plug Style:

Angle

Intake Valves Included:

Yes

Exhaust Valves Included:

Yes

Exhaust Valve Diameter (in.):

1.600 in.

Valve Springs Included:

Yes

Maximum Valve Lift (in.):

0.600 in.

Camshaft Style:

Hydraulic roller

Outside Diameter of Outer Spring (in.):

1.295 in.

Damper Spring Included:

Yes

Number of Springs Per Valve:

Dual

Retainers Included:

Yes

Retainer Material:

Chromoly steel

Locks Included:

Yes

Lock Style:

7 degree

Valve Stem Seals Included:

Yes

Rocker Arm Studs Included:

Yes

Rocker Arm Nut Thread Size:

7/16 in.-20

Rocker Arms Included:

No

Rocker Arm Nuts Included:

No

Guideplates Included:

Yes

Guideplate Pushrod Size:

5/16 in.

Accessory Bolt Holes Drilled:

Yes

Intake Valve Angle:

11

Exhaust Valve Angle:

13

Valve Guides Included:

Yes

Valve Guide Material:

Bronze

Valve Seats Machined:

Yes

Valve Seat Machine Style:

3-angle

Valve Seat Material:

Ductile iron

Cylinder Head Color:

Natural

Steam Holes Drilled:

No

Oiling Style:

Through pushrod

Machined for O-Ring:

No

Heat Crossover:

No

Quantity:

Sold individually.

Notes:

Street ported fully CNC, non-emissions head. For blocks that are machined for 7/16 in. head bolts, the use of TFS-51400419 head bolt bushings is required. Set-up for hydraulic roller camshafts.

Trick Flow® Twisted Wedge® 11R 170 Cylinder Heads for Small Block Ford

Something great just got better! Trick Flow® used advanced 3D solid modeling and CAD tools (plus a couple decade's worth of racing experience) to turn its track-proven Twisted Wedge® design into the potent Twisted Wedge® 11R 170 head.

Trick Flow® Twisted Wedge® 11R 170 heads are a direct replacement for previous Twisted Wedge® heads and work with all Twisted Wedge®-specific pistons. New high-velocity, race-inspired CNC street ported runners have been optimized for today's popular bore and stroke combinations, and have a standard resolution surface finish for significant performance gains. Modified 11 degree intake and 13 degree exhaust valve angles and a restructured, CNC-profiled combustion chamber arrangement provides more airflow and performance potential.

Premium certified materials and components, along with the finest CNC tooling, are used to ensure exceptional quality and durability, dimensional accuracy, and balanced flow from port-to-port. The fully machined castings are very strong and have a great-looking, billet-like appearance.

Trick Flow® Twisted Wedge® 11R 170 cylinder heads are available fully assembled or as bare castings. Sold individually.
